Solar_Marcel Posted February 5 Share Posted February 5 just keeps putting out M flares Link to comment Share on other sites More sharing options...
Sapphire828 Posted February 5 Share Posted February 5 6 hours ago, tniickck said: a triple and radio emission Where can the radio emissions be monitored? Link to comment Share on other sites More sharing options...
tniickck Posted February 5 Share Posted February 5 2 hours ago, Sapphire828 said: Where can the radio emissions be monitored? notifications from swpc, they can be enabled in SWL phone app Link to comment Share on other sites More sharing options...
hamateur 1953 Posted February 5 Share Posted February 5 (edited) Hey @tniickck solar soft shows ten M class out of the last twenty. Amazing. And I suspect it may continue through tomorrow too. I think 9393 holds the all time record at 48 total or close. Gonna check Nope, 9393 only spit out 34 total m class. We might have had a more productive one but I don’t know of one offhand. Edited February 5 by hamateur 1953 History check 1 Link to comment Share on other sites More sharing options...
Maciej Dunst Posted February 5 Share Posted February 5 Good morning, could somebody explain why are these two ARs assigned as alfa magnetic class? Is this some bug or what? Link to comment Share on other sites More sharing options...
Malisha Reuvekamp Posted February 5 Share Posted February 5 (edited) I am experiencing this too. And someone I know also, yesterday. At the homepage they are all green (left) Edited February 5 by Malisha Reuvekamp Link to comment Share on other sites More sharing options...
arjemma Posted February 5 Share Posted February 5 1 hour ago, Maciej Dunst said: Good morning, could somebody explain why are these two ARs assigned as alfa magnetic class? Is this some bug or what? It’s because of foreshortening so a magnetic class can’t be 100% determined yet. It’s too early. 2 Link to comment Share on other sites More sharing options...
MinYoongi Posted February 5 Share Posted February 5 26 minutes ago, arjemma said: It’s because of foreshortening so a magnetic class can’t be 100% determined yet. It’s too early. Came here to say this that’s very right. 2 Link to comment Share on other sites More sharing options...
hamateur 1953 Posted February 5 Share Posted February 5 I have also seen this sometimes for only a brief period when previously a bgd or something else. It gets corrected within an hour or so. Perhaps the data is being revised and its a placeholder or something akin to when we just see the leading spot on the east limb…. 1 1 Link to comment Share on other sites More sharing options...

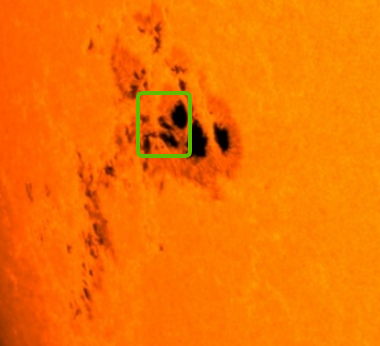

MinYoongi Posted February 5 Share Posted February 5 Im still confused with this portion of the Region (marked in green) : When using the new function (slider) ((thanks @Philalethes for reminding me!)) it does not match up to anything on the magnetogram really. I think theres more foreshortening going on with them in respect to the intensigram. its always frustrating to wait for that to match up Especially when trying to determine if theres a gamma, or only a beta delta etc. but my consensus from what @Marcel de Bont and others said yesterday, the rightmost sunspot in my marked green box seems to be the delta. 1 Link to comment Share on other sites More sharing options...
Solar_Marcel Posted February 5 Share Posted February 5 (edited) 1 hour ago, MinYoongi said: Im still confused with this portion of the Region (marked in green) : When using the new function (slider) ((thanks @Philalethes for reminding me!)) it does not match up to anything on the magnetogram really. I think theres more foreshortening going on with them in respect to the intensigram. its always frustrating to wait for that to match up Especially when trying to determine if theres a gamma, or only a beta delta etc. but my consensus from what @Marcel de Bont and others said yesterday, the rightmost sunspot in my marked green box seems to be the delta. i could try to edit the magnetogram image so that it can be determined: Edited February 5 by Solar_Marcel Link to comment Share on other sites More sharing options...
Philalethes Posted February 5 Share Posted February 5 1 hour ago, MinYoongi said: Im still confused with this portion of the Region (marked in green) : When using the new function (slider) ((thanks @Philalethes for reminding me!)) it does not match up to anything on the magnetogram really. I think theres more foreshortening going on with them in respect to the intensigram. its always frustrating to wait for that to match up Especially when trying to determine if theres a gamma, or only a beta delta etc. but my consensus from what @Marcel de Bont and others said yesterday, the rightmost sunspot in my marked green box seems to be the delta. It's not 100% clear, but I'm pretty sure at this point that the middle of those three spots to the right inside the green box is a positive spot wedged in between the other negative ones, so yeah, that would probably be the delta. 2 Link to comment Share on other sites More sharing options...
Jesterface23 Posted February 5 Author Share Posted February 5 (edited) The blue circled area seems like the clear one. The red circled area almost looks like a strong positive polarity spot, but not sure at this point Edited February 5 by Jesterface23 Link to comment Share on other sites More sharing options...
hamateur 1953 Posted February 5 Share Posted February 5 1 hour ago, Philalethes said: It's not 100% clear, but I'm pretty sure at this point that the middle of those three spots to the right inside the green box is a positive spot wedged in between the other negative ones, so yeah, that would probably be the delta. I was thinking exactly the same thing. It would certainly account for the high activity without self-destruction like we see all too often!! Haha. Link to comment Share on other sites More sharing options...

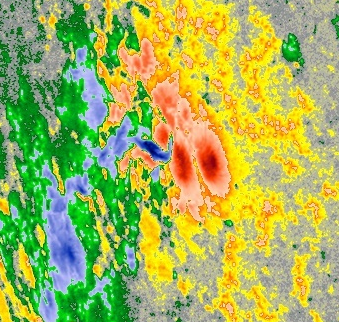

Philalethes Posted February 5 Share Posted February 5 1 hour ago, Jesterface23 said: The blue circled area seems like the clear one. The red circled area almost looks like a strong positive polarity spot, but not sure at this point I'm fairly sure the top one is a negative one. The field boundaries are matching up better with the intensitygrams now, and looks like this: It's hugged by positive penumbra on the left, but it would surprise me if the spot itself is somehow positive. From what I can tell the positive spot in between there is essentially forming a delta with all the surrounding negative ones. 1 Link to comment Share on other sites More sharing options...
Jesterface23 Posted February 5 Author Share Posted February 5 16 minutes ago, Philalethes said: I'm fairly sure the top one is a negative one. The field boundaries are matching up better with the intensitygrams now, and looks like this: It's hugged by positive penumbra on the left, but it would surprise me if the spot itself is somehow positive. From what I can tell the positive spot in between there is essentially forming a delta with all the surrounding negative ones. I sort of had a duh moment. I was just looking at imagery from ever 30 minutes instead of imagery once or twice a minute. I am fairly certain now it is one of those very strong polarity spots. The polarity of the spot is a little bit confusing right now though I guess. Either it is a negative polarity spot, or it is a positive polarity spot with negative spots on the north side of it. Link to comment Share on other sites More sharing options...
MinYoongi Posted February 5 Share Posted February 5 so its not the main delta? Link to comment Share on other sites More sharing options...
Jesterface23 Posted February 5 Author Share Posted February 5 Looking back at stats of the previous strongest spots of the cycle in the southern disk, they do look to have been negative polarity Link to comment Share on other sites More sharing options...
Solar_Marcel Posted February 5 Share Posted February 5 55 minutes ago, Jesterface23 said: Looking back at stats of the previous strongest spots of the cycle in the southern disk, they do look to have been negative polarity Nice... But why is that like that? Is there some kind of mechanism that negative spots tend to be stronger overall or what causes that? So many questions i know, but i also wanna know more about that so ill have to ask people who might know😅 2 Link to comment Share on other sites More sharing options...
mozy Posted February 5 Share Posted February 5 (edited) This region sure is confusing me, the positive that's crammed inbetween looks even stronger now on the magnetogram but still barely show up as anything on the intensitygram. Edited February 5 by mozy 1 Link to comment Share on other sites More sharing options...
cgrant26 Posted February 5 Share Posted February 5 (edited) 50 minutes ago, mozy said: This region sure is confusing me, the positive that's crammed inbetween looks even stronger now on the magnetogram but still barely show up as anything on the intensitygram. Yeah, that one is pretty crazy. On edit, I'm starting to doubt which part goes to which on the magnetogram. Edited February 5 by cgrant26 1 Link to comment Share on other sites More sharing options...
MinYoongi Posted February 5 Share Posted February 5 1 hour ago, mozy said: This region sure is confusing me, the positive that's crammed inbetween looks even stronger now on the magnetogram but still barely show up as anything on the intensitygram. 26 minutes ago, cgrant26 said: Yeah, that one is pretty crazy. On edit, I'm starting to doubt which part goes to which on the magnetogram. yes, i have the exacte same problem. thats why i dont know where the delta is. any explanations/ideas? 😕 Link to comment Share on other sites More sharing options...
mozy Posted February 5 Share Posted February 5 (edited) 9 minutes ago, MinYoongi said: yes, i have the exacte same problem. thats why i dont know where the delta is. any explanations/ideas? 😕 Well that is the delta, but for some reason It's not showing up that well on the intensitygram Edit: It could be one of these situations we've talked about before that after a bigger flare has occurred suddenly the delta can be seen much more/look bigger, would be cool to see if that happens again. Edited February 5 by mozy Link to comment Share on other sites More sharing options...
MinYoongi Posted February 5 Share Posted February 5 Just now, mozy said: Well that is the delta, but for some reason It's not showing up that well on the intensitygram does it mean its a small delta which seems bigger on the magnetogram? Link to comment Share on other sites More sharing options...
Miles Posted February 5 Share Posted February 5 I definitely see a very tight delta. Question is is it building up or decaying. Link to comment Share on other sites More sharing options...
